NX2301PVL Original stock-wholesale price

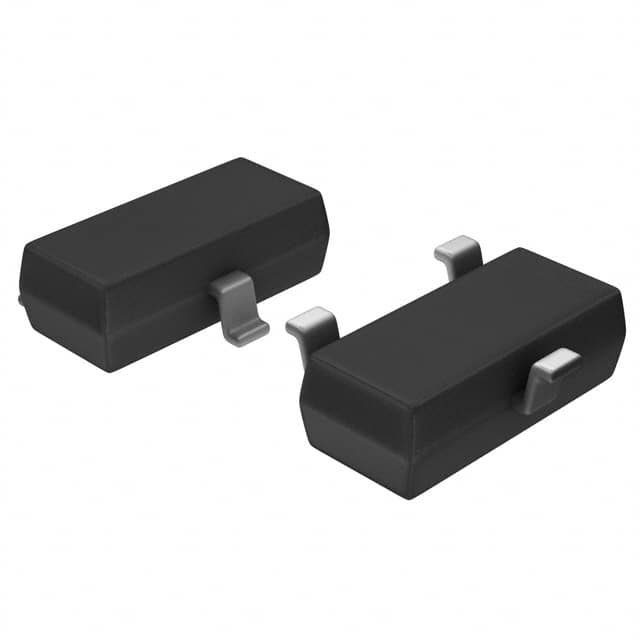

The image is for reference only



NX2301PVL

Manufacturer Model： NX2301PVL
Manufacturer： Nexperia USA Inc.
Package/Specification

Product Description： MOSFET P-CHANNEL 20V 2A TO236AB

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x0.06882（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel (TR)
Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	120mOhm @ 1A, 4.5V
Gate Charge (Qg) (Max) @ Vgs	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 4.5 V

Technical Documentation
Data Book	NX2301PVL.pdf

Model recommendation

Latest products

Renesas 2SK1958-T1-A

IXTA140N055T2

onsemi PCP1403-TD-H

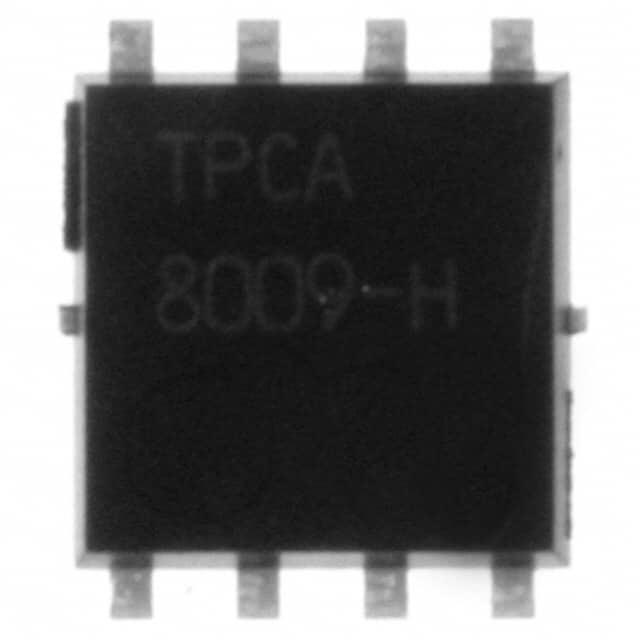

Toshiba Semiconductor and Storage TPCA8009-H(TE12L,Q
