HUF76009D3ST Original stock-wholesale price

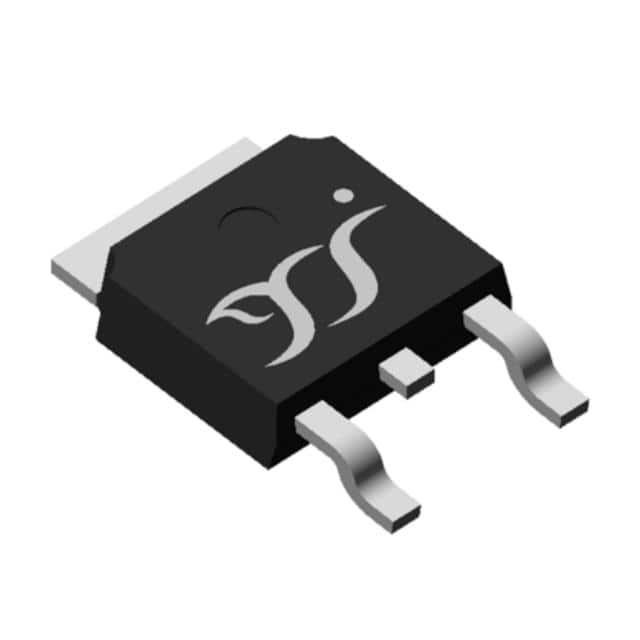

The image is for reference only



onsemi HUF76009D3ST

Manufacturer Model： HUF76009D3ST
Manufacturer： onsemi
Package/Specification

Product Description： MOSFET N-CH 20V 20A TO252AA

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - FETs, MOSFETs - Single
Mfr	onsemi
Series	UltraFET™
Package	Tape & Reel (TR)
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	27mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 10 V

Technical Documentation
Data Book	HUF76009D3ST.pdf
