TPH5R60APL,L1Q Original stock-wholesale price

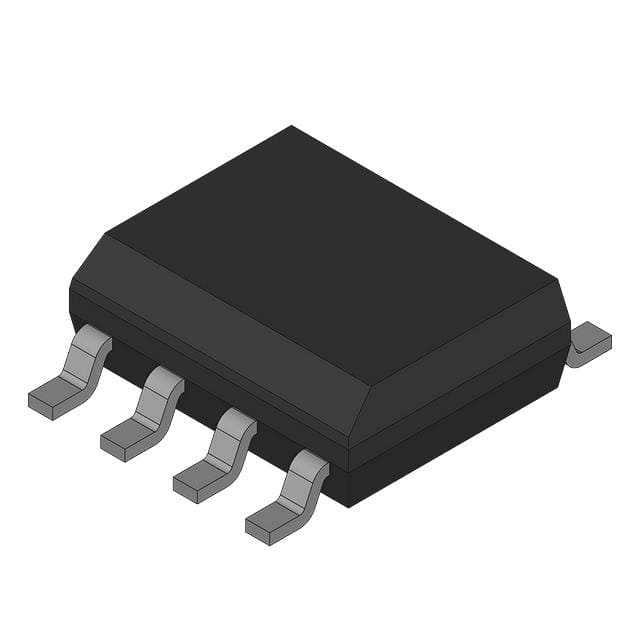

The image is for reference only



TPH5R60APL,L1Q

Manufacturer Model： TPH5R60APL,L1Q
Manufacturer： Toshiba Semiconductor and Storage
Package/Specification

Product Description： PB-F POWER MOSFET TRANSISTOR N-C

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x0.58800（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - FETs, MOSFETs - Single
Mfr	Toshiba Semiconductor and Storage
Series	U-MOSIX-H
Package	Tape & Reel (TR)
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.6mOhm @ 30A, 10V
Gate Charge (Qg) (Max) @ Vgs	2.5V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	52 nC @ 10 V

Technical Documentation
Data Book	TPH5R60APL,L1Q.pdf
