APT22F120B2 Original stock-wholesale price

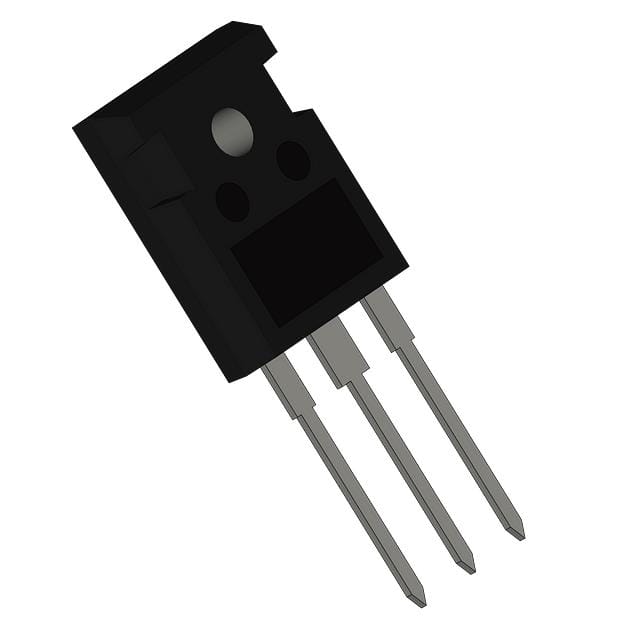

The image is for reference only



APT22F120B2

Manufacturer Model： APT22F120B2
Manufacturer： Microchip Technology
Package/Specification

Product Description： MOSFET N-CH 1200V 23A T-MAX

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x36.46500（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - FETs, MOSFETs - Single
Mfr	Microchip Technology
Series	POWER MOS 8™
Package	Tube
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	700mOhm @ 12A, 10V
Gate Charge (Qg) (Max) @ Vgs	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	260 nC @ 10 V

Technical Documentation
Data Book	APT22F120B2.pdf
