STN5PF02V Original stock-wholesale price

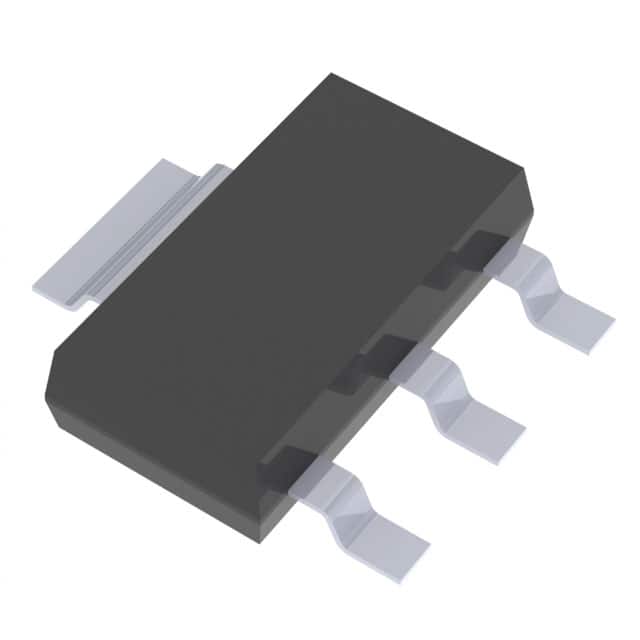

The image is for reference only



STMicroelectronics STN5PF02V

Manufacturer Model： STN5PF02V
Manufacturer： STMicroelectronics
Package/Specification

Product Description： MOSFET P-CH 20V 4.2A SOT223

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - FETs, MOSFETs - Single
Mfr	STMicroelectronics
Series	STripFET™ II
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Obsolete
Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Vgs(th) (Max) @ Id	80mOhm @ 2.1A, 4.5V
Vgs(th) (Max) @ Id	450mV @ 250µA (Min)

Technical Documentation
Data Book	STN5PF02V.pdf
