PJP7NA80_T0_00001 Original stock-wholesale price

Panjit International Inc. PJP7NA80_T0_00001

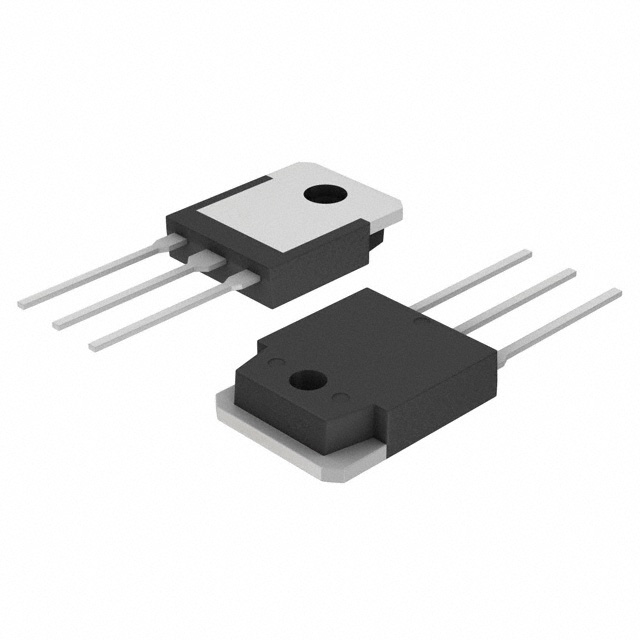

The image is for reference only



Panjit International Inc. PJP7NA80_T0_00001

Manufacturer Model： PJP7NA80_T0_00001
Manufacturer： Panjit International Inc.
Package/Specification

Product Description： 800V N-CHANNEL MOSFET

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - FETs, MOSFETs - Single
Mfr	Panjit International Inc.
Series	-
Package	Tube
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.55Ohm @ 3.5A, 10V
Gate Charge (Qg) (Max) @ Vgs	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 10 V

Technical Documentation
Data Book	PJP7NA80_T0_00001.pdf
