PDTB114EQAZ Original stock-wholesale price

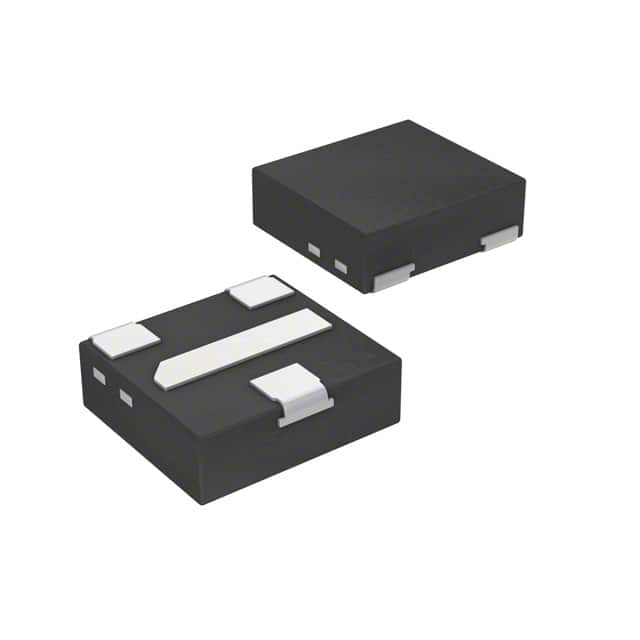

The image is for reference only



PDTB114EQAZ

Manufacturer Model： PDTB114EQAZ
Manufacturer： Nexperia USA Inc.
Package/Specification

Product Description： TRANS PREBIAS PNP 3DFN

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x0.05957（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - Bipolar (BJT) - Single, Pre-Biased
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel (TR)
Product Status	Active
Transistor Type	PNP - Pre-Biased
Current - Collector (Ic) (Max)	500 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	10 kOhms
Resistor - Emitter Base (R2)	10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 50mA, 5V
Current - Collector Cutoff (Max)	100mV @ 2.5mA, 50mA
Current - Collector Cutoff (Max)	500nA

Technical Documentation
Data Book	PDTB114EQAZ.pdf
