2SD2420AP Original stock-wholesale price

Panasonic Electronic Components 2SD2420AP

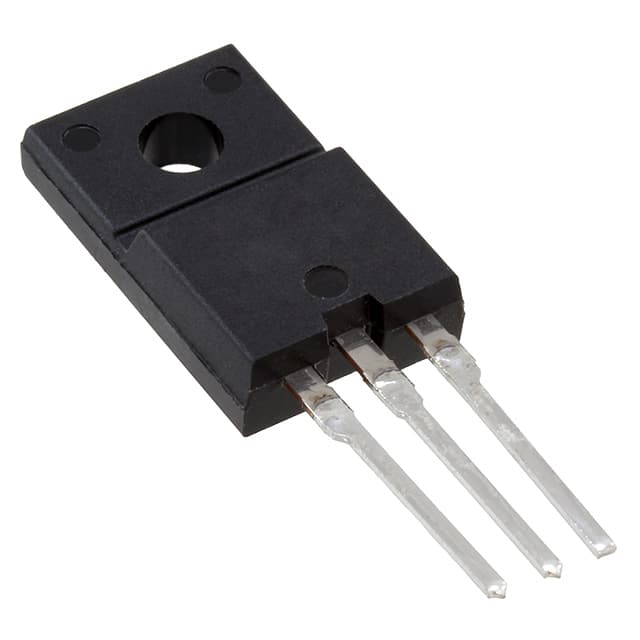

The image is for reference only



Panasonic Electronic Components 2SD2420AP

Manufacturer Model： 2SD2420AP
Manufacturer： Panasonic Electronic Components
Package/Specification

Product Description： TRANS NPN DARL 80V 4A TO220D-A1

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - Bipolar (BJT) - Single
Mfr	Panasonic Electronic Components
Series	-
Package	Bulk
Product Status	Obsolete
Transistor Type	NPN - Darlington
Current - Collector (Ic) (Max)	4 A
Voltage - Collector Emitter Breakdown (Max)	80 V
Vce Saturation (Max) @ Ib, Ic	4V @ 20mA, 5A
Current - Collector Cutoff (Max)	500µA
DC Current Gain (hFE) (Min) @ Ic, Vce	4000 @ 3A, 3V
Frequency - Transition	2 W
Frequency - Transition	20MHz

Technical Documentation
Data Book	2SD2420AP.pdf
